WellSim Version 4.10.1.17 has been released.



What’s new in WellSim 4.10.1.17

This is an overview of new features in this version of WellSim. For a fuller list of changes in recent versions of WellSim,refer to Recent Modifications.

New features in this version of WellSim



TETRAD Tables module

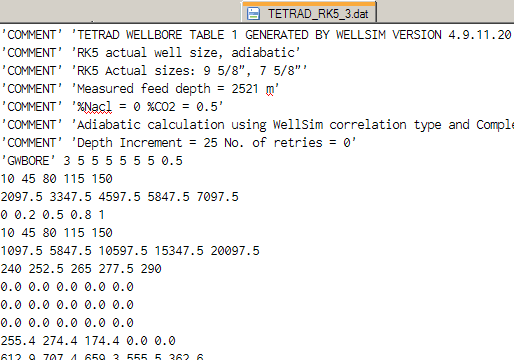

To calculate well data for TETRAD:

tt_TextFileStart


Side-by-side graphs

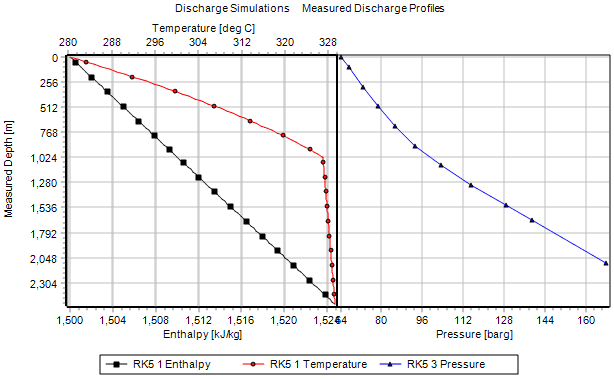

Multiple Graph can now display side-by-side graphs of data that share a common axis, usually depth:

gxw_2MGraph3

The two side-by-side graphs revert to single graph if the dependent axes have same unit type.

Graphs

  • Enhanced zoom: zoom all directions (all axes) or zoom independent axis only .
  • Draggable axes in Quick Graph and Multiple Graph .
  • Set axis increment to 0 to get good axis labels for normal graph and zoomed graph.
  • Logarithmic axis labels improved; adjust axis labels by setting Increment.

And

In the Multiple Graph Group window, you can now select more than one field by Shift-clicking or Ctrl-clicking.

In the Column Ordering and Visibility window, you can now select more than one field by Shift-clicking or Ctrl-clicking. WellSim remembers the order that you Ctrl-click the fields and moves the fields in this order.

Database version changed from 8 to 9 for the new TETRAD module.
