Tutorial: Measured injection profiles (optional)

A measured injection profile has measured pressure and temperature down a well injection at a given steady-state mass flowrate. This data can be measured:

By running a pressure/temperature monitor tool (often with a spinner) down the well; this gives measurements at close intervals.
By a few pressure/temperature monitor tools at fixed depths.

This tutorial assumes the latter and shows how to enter data for an injection at 860 t/hr:

If you are not sure what to do here, review the tutorial to enter a geometry configuration.

Entering a new measured injection profile

In the sample database, open a new measured injection profile for .

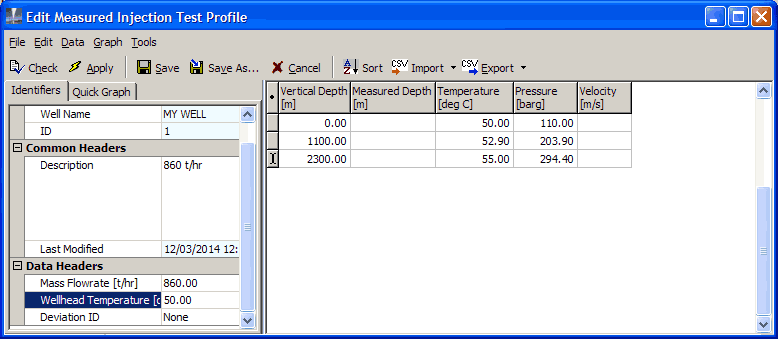

Enter these values:

Note:
- The measurements at the wellhead are the same as in the measured injectivity curve at 860 t/hr see here.
- Measure all depths relative to the same point at the wellhead read more.
Click to check, apply and save the data, then exit.

You will later compare this measured profile with the calculated injection simulation profile at the same mass flowrate see here.
